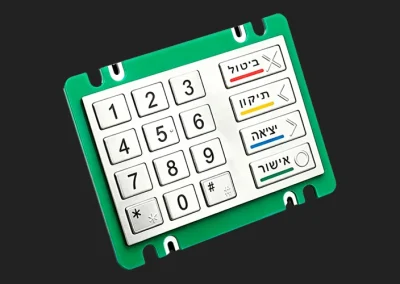

Model: D-8216
16 Keys Metal Keypad for ATM & Parcel Locker
Specially designed for harsh environment, use the brushed stainless steel material, and special water proof design, IP65 protect level, it has good performance of water proof, dust proof and vandalism proof, which make it a good choice for public use or harsh environment.
- Gold-on-gold dome on gold PCB contact
- Multiple interface options available: USB, PS/2, RS232, RS485, Matrix
- Reinforced PCB to guarantee the mechanical stability
- Ink-filled chemically etched characters—aesthetically pleasing and durable
- Any language is available and it’s free of additional charge
D-8216
16 Keys Metal Keypad for ATM & Parcel Locker
D-8216
16 Keys Metal Keypad for ATM & Parcel Locker
High-Quality Materials
304 stainless steel & industrial-grade silicone
Ink-filled Chemically Etched Characters
Aesthetically pleasing and durable
Protection Level
IP65 protection level
—— Best Solution For You
Special Structural Design
Years of R&D and use have enriched our experience, guiding us to ensure long-term safety and stability in our equipment’s design and components for efficient performance.
Compatible with Linux, Win, Mac and other systems
Compatibility
—— Original Design Manufacturer
Multiple Interfaces, Customized On Demand
Provides various installation methods, compatible with various platforms
USB
PS2
RS232/RS485
Matrix Interface
Product Size
Specifications
| Physical Properties | |
| Panel Size | 160×102mm |
| Communication Interface | USB/PS2/RS232/Matrix |
| Number of Keys | 16 |
| Key Travel | ≈0.54mm |
| Key Pressure | ≈1.5N±0.2N |
| Individual Key Life | ≈200W Times |
| Key Material | 304 Stainless Steel |
| Panel Material | 304 Stainless Steel |
| Chassis Material | 304 Stainless Steel |
| PCB Craftsmanship | Gold immersion |
| Key Backlighting | No |
| Key Size | 23.6×18.6mm、50×18.6mm |
| Net Weight | ≈500g |
| Trigger Mode | Carbon Grain |
| Electrical Properties | |
| Communication Interface | USB 2.0 |
| System Compatibility | Win, Linux, etc. |
| Working Voltage | 5V±0.25 |
| Working Current | <50mA |
| Maximum Power | ≈0.15W |
| Test Items | |
| Protection Level | IP65 |
| Working Temperature | -40°C~70°C |
| Storage Temperature | -45°C~85°C |
| Mean Time to Failure | >20000H |
| Mean Time to Repair | <30M |

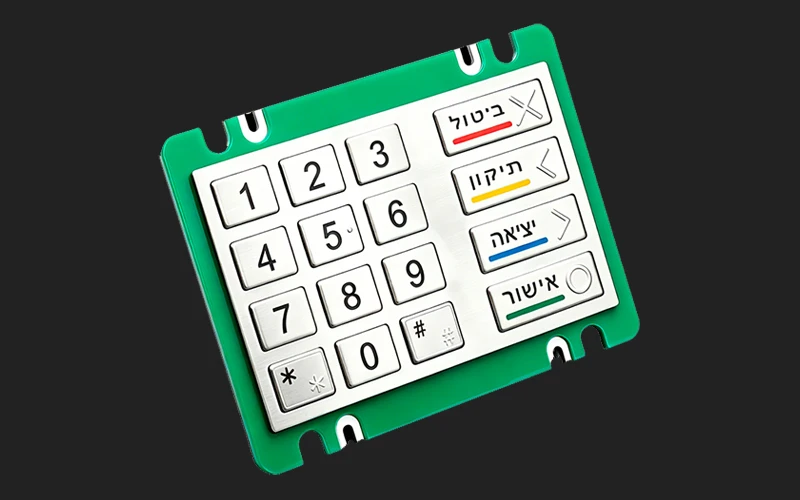

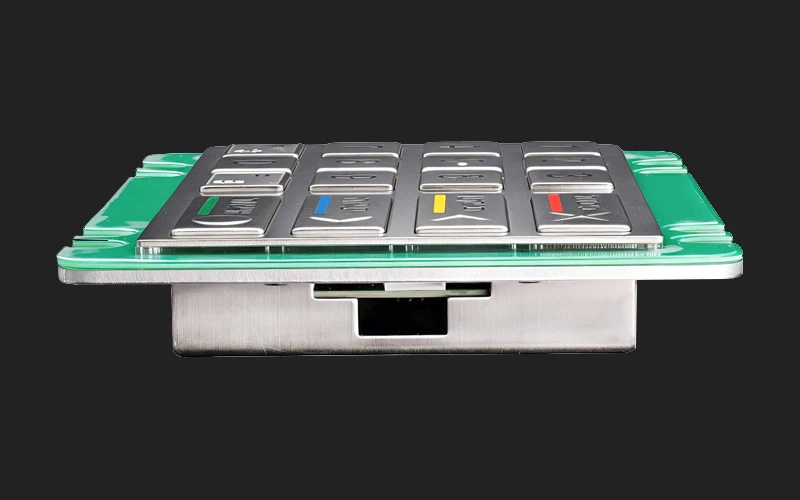

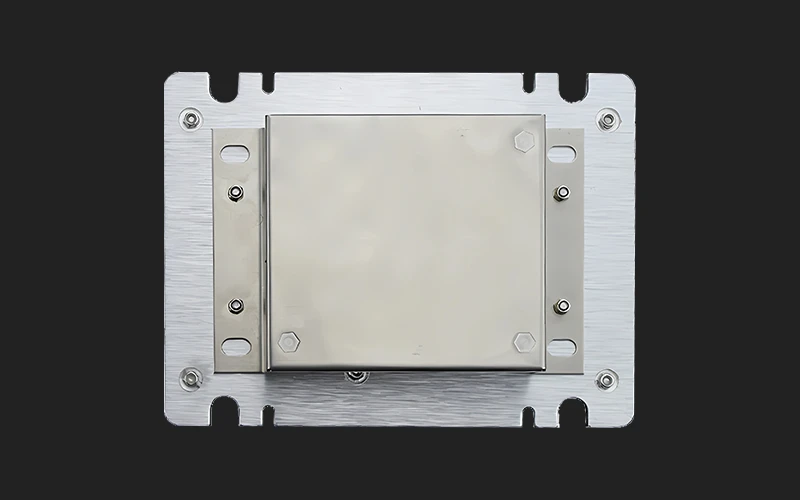

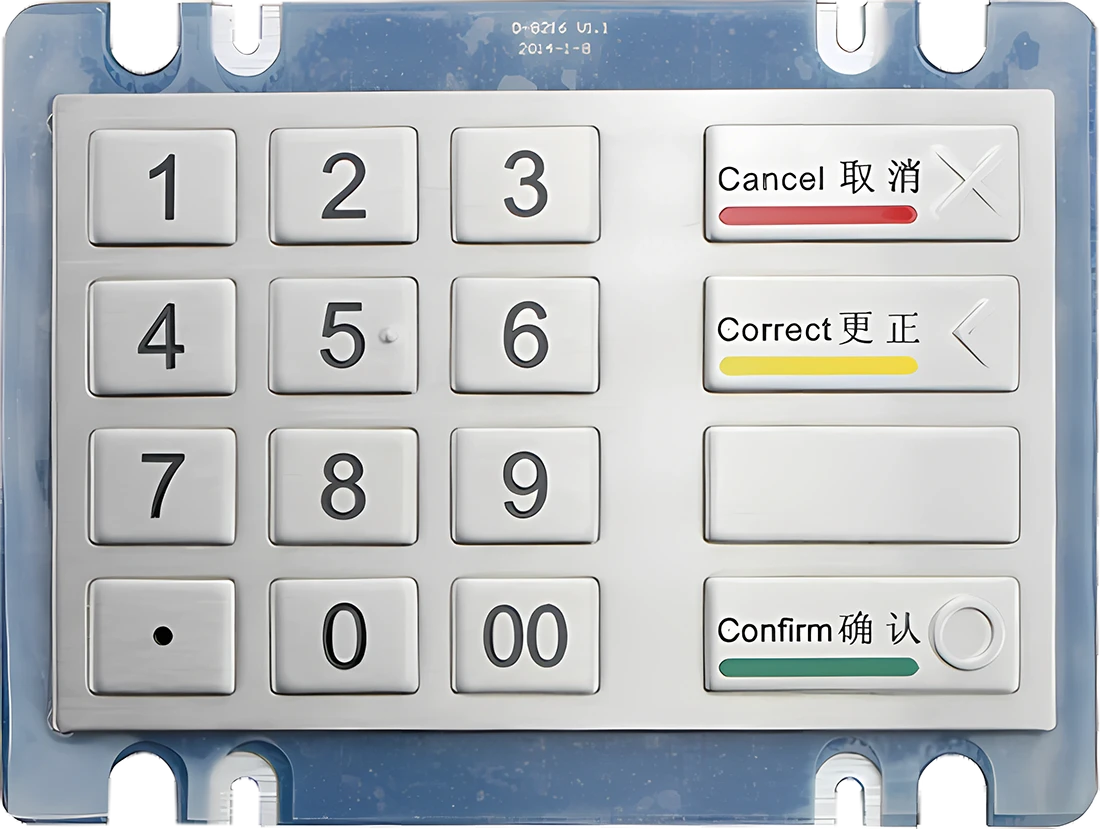

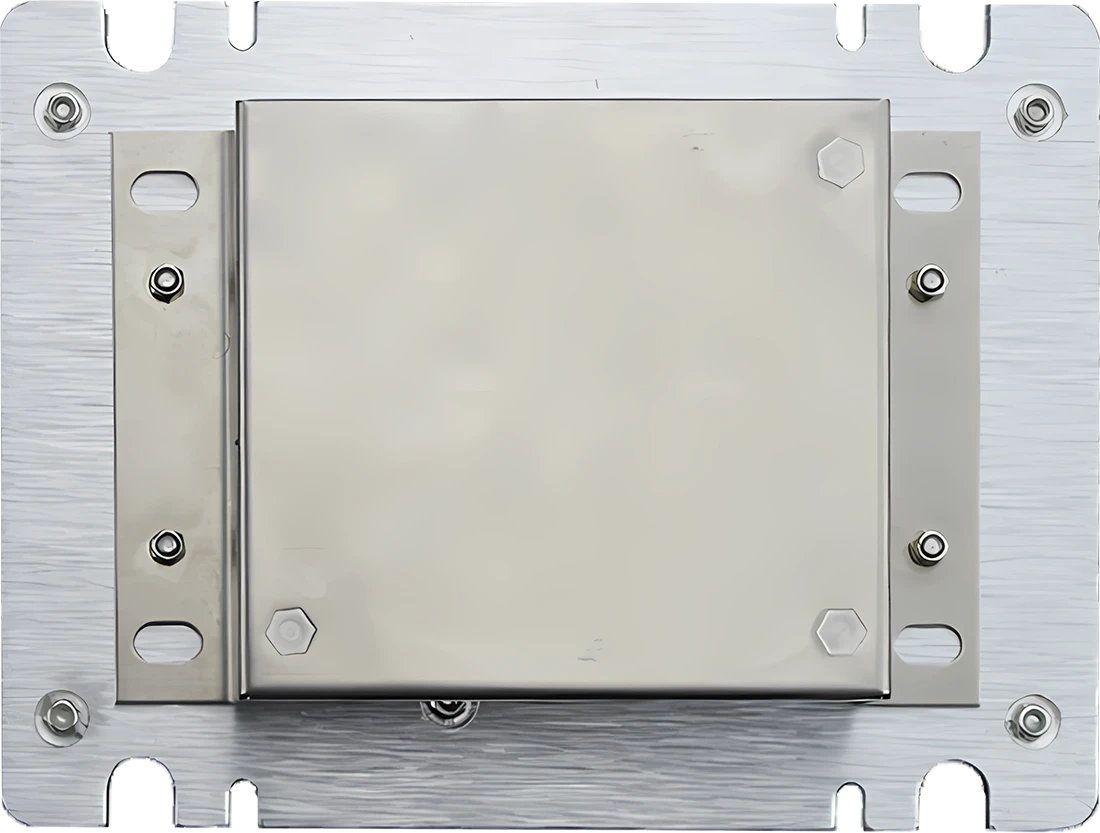

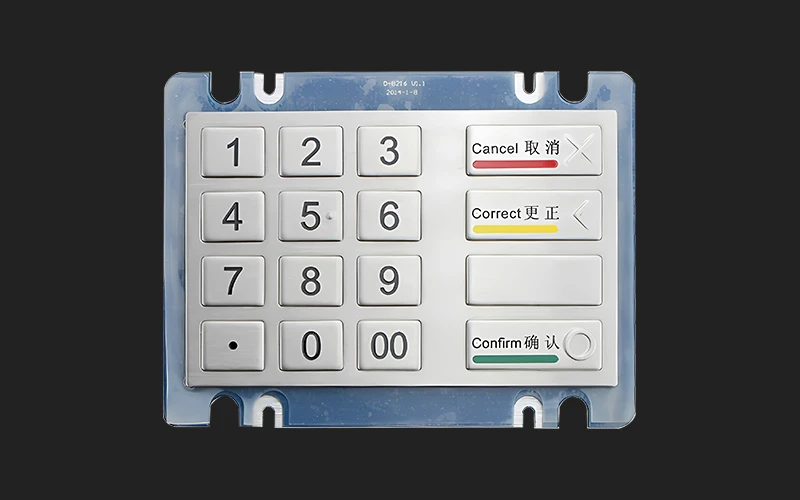

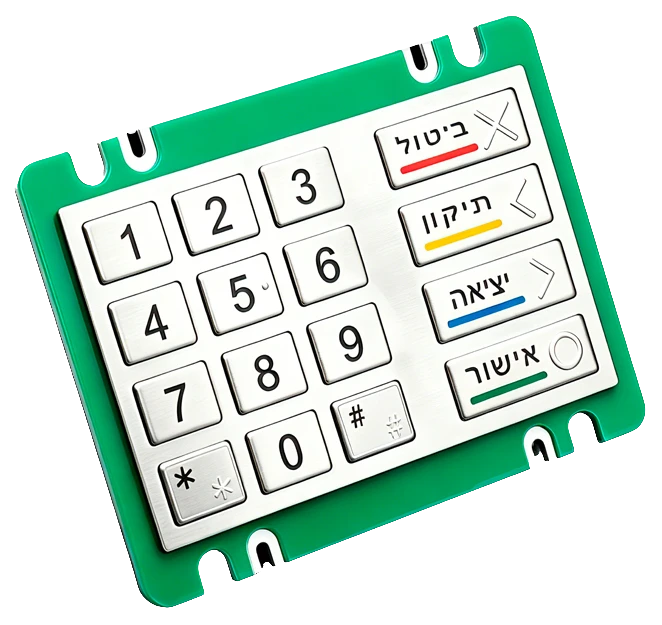

D-8216 Gallery
