Model: D-8212
18 Keys Industrial Metal Numeric Keypad for Automation Equipment
12-Key Industrial Metal Backlit Numeric Keypad with rugged stainless steel construction and IP65 protection. Designed for reliable operation in access control, kiosks, vending machines, and industrial equipment.
- Gold-on-gold dome on gold PCB contact
- Multiple interface options available: USB, PS/2, RS232, RS485, Matrix
- Reinforced PCB to guarantee the mechanical stability
- The keys have a soft feel and are backlit
- Any language is available and it’s free of additional charge
D-8212
18 Keys Industrial Metal Numeric Keypad for Automation Equipment
D-8212
18 Keys Industrial Metal Numeric Keypad for Automation Equipment
High-Quality Materials
304 stainless steel & industrial-grade silicone
Laser-engraved Characters
Backlit characters can be customized.
Protection Level
IP65 protection level
—— Best Solution For You
Special Structural Design
Years of R&D and use have enriched our experience, guiding us to ensure long-term safety and stability in our equipment’s design and components for efficient performance.
—— Original Design Manufacturer
Multiple Interfaces Available
Provides various installation methods, compatible with various platforms
USB
PS2
RS232/RS485
Matrix

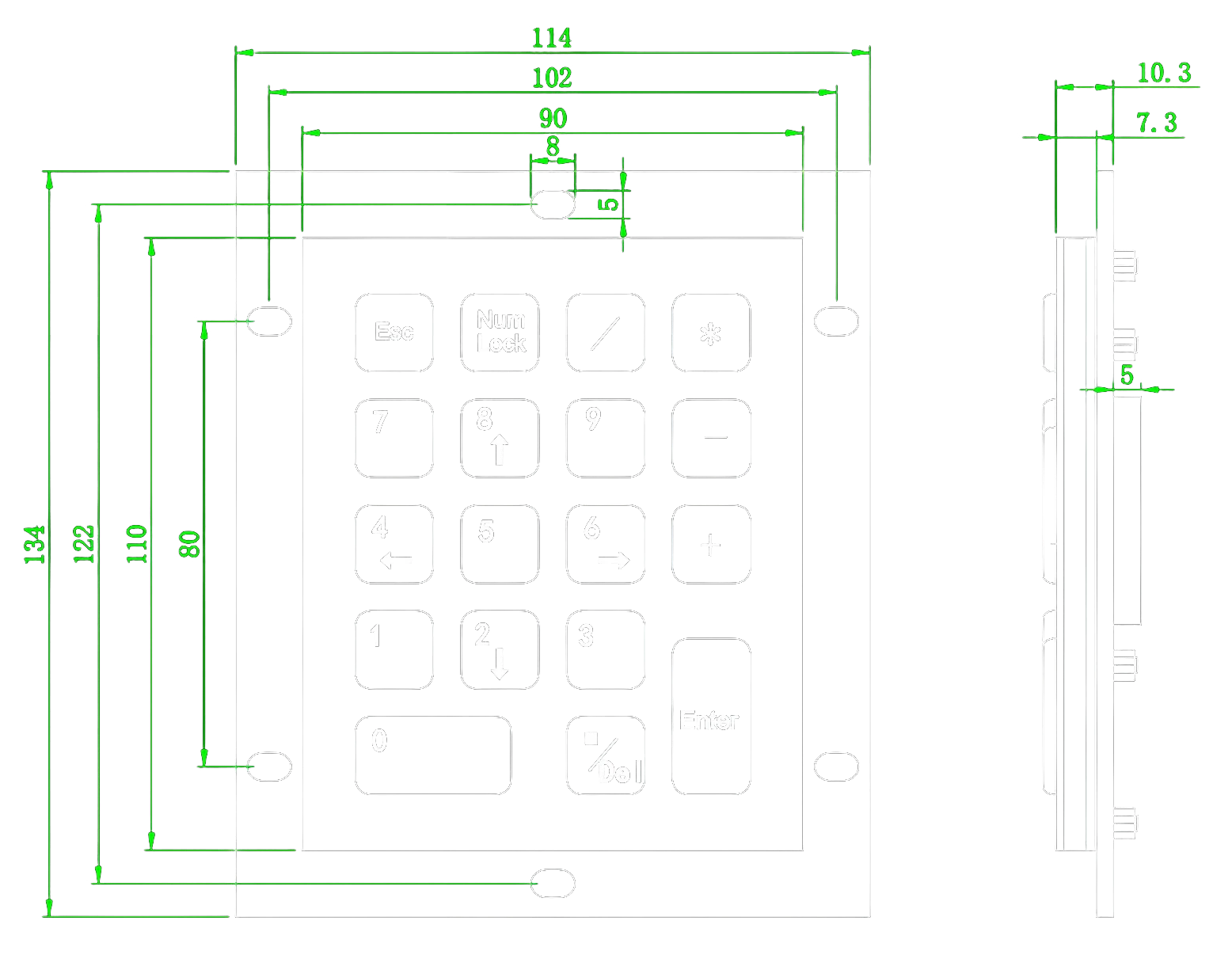

Product Size
Specifications
| Physical Properties | |
| Panel Size | 90×110mm |
| Communication Interface | USB/PS2/RS232/RS485/Matrix |
| Number of Keys | 18 |
| Key Travel | ≈1.5mm |
| Key Pressure | ≈0.6N±0.1N |
| Individual Key Life | ≈200W Times |
| Key Material | 304 Stainless Steel |
| Panel Material | 304 Stainless Steel |
| Chassis Material | 304 Stainless Steel |
| PCB Craftsmanship | Gold immersion |
| Key Backlighting | No |
| Key Size | 14×14mm |
| Net Weight | ≈300g |
| Trigger Mode | Carbon Grain |
| Electrical Properties | |
| Communication Interface | USB 2.0 |
| System Compatibility | Win, Linux, etc. |
| Working Voltage | 5V±0.25 |
| Working Current | <50mA |
| Maximum Power | ≈0.15W |
| Test Items | |
| Protection Level | IP65 |
| Working Temperature | -40°C~70°C |
| Storage Temperature | -45°C~85°C |
| Mean Time to Failure | >20000H |
| Mean Time to Repair | <30M |

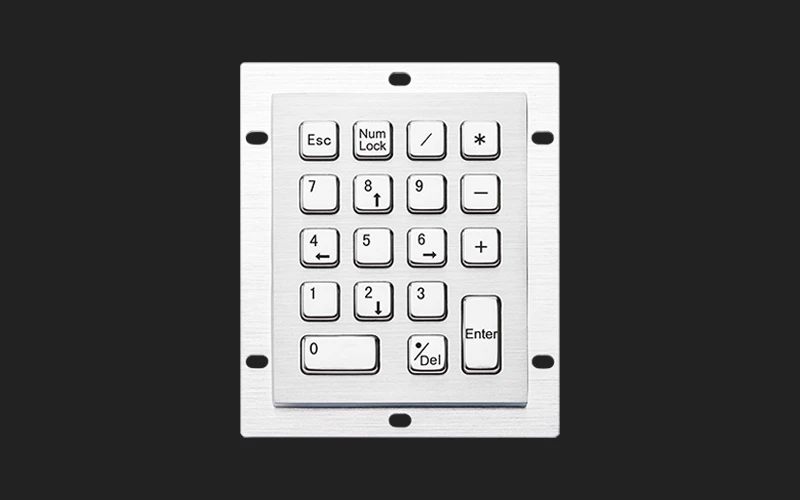

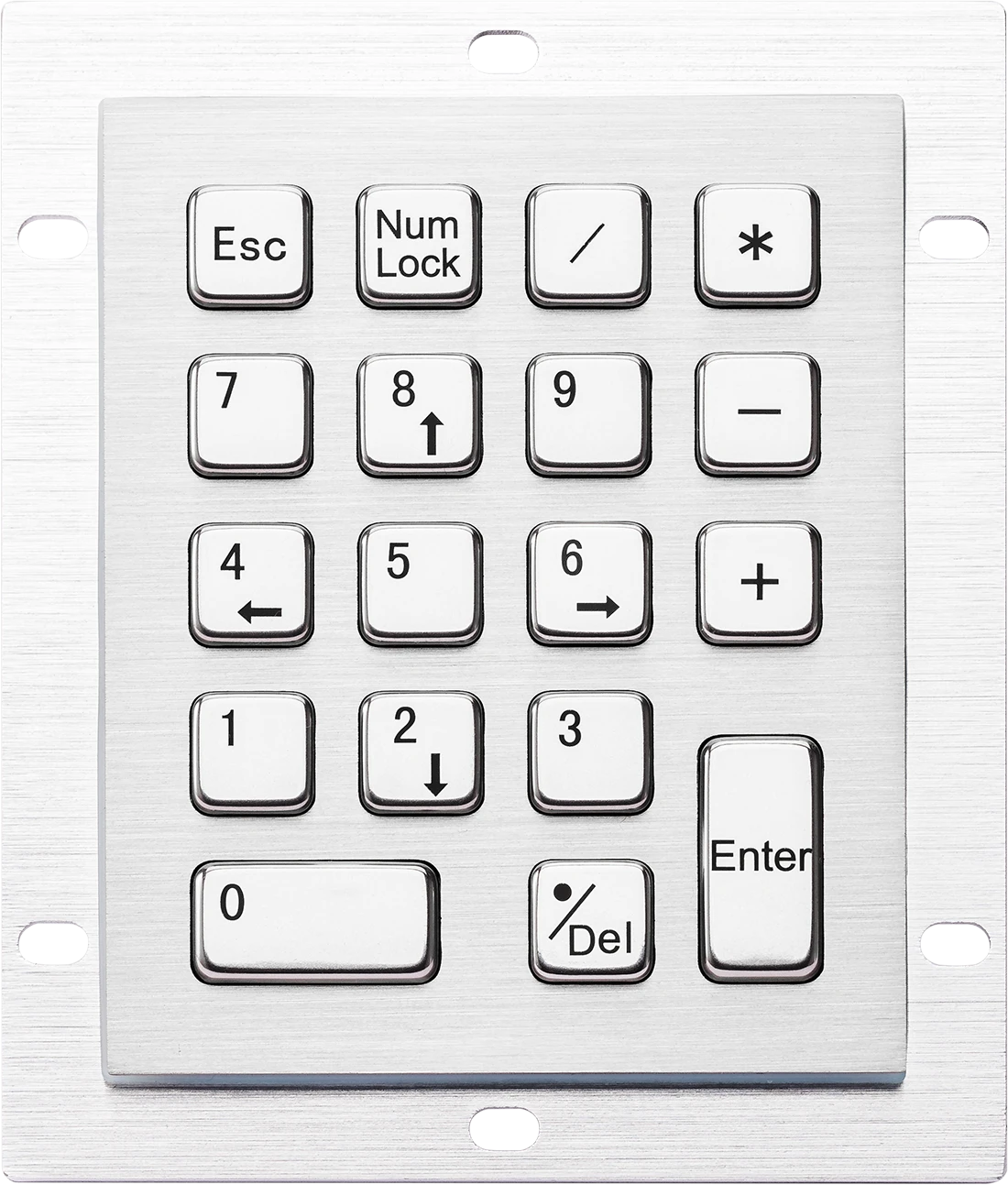

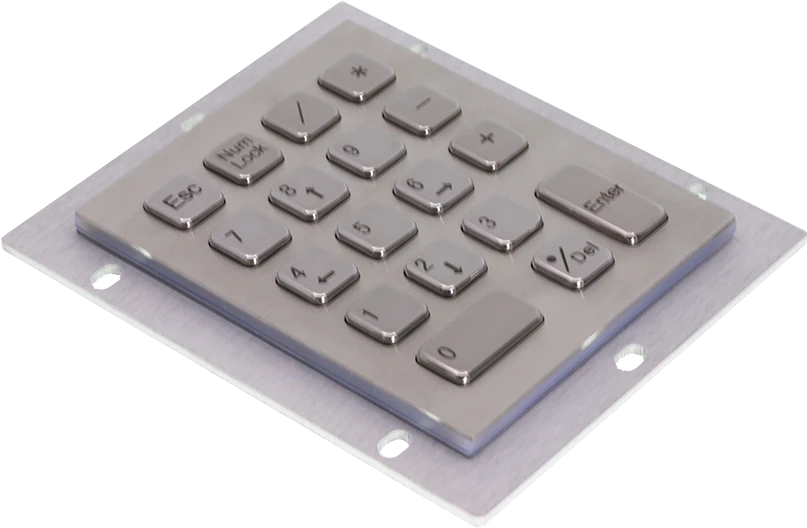

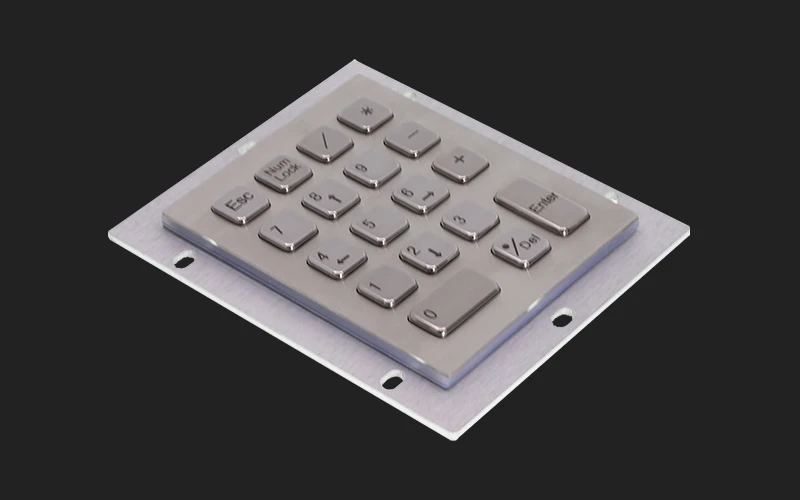

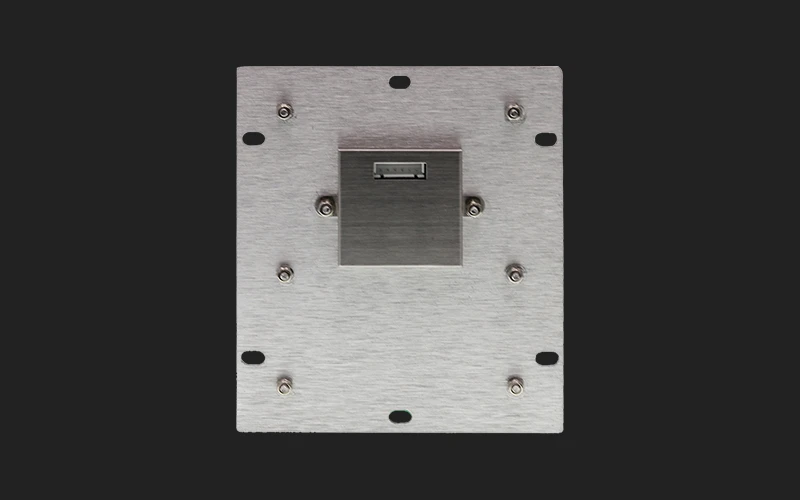

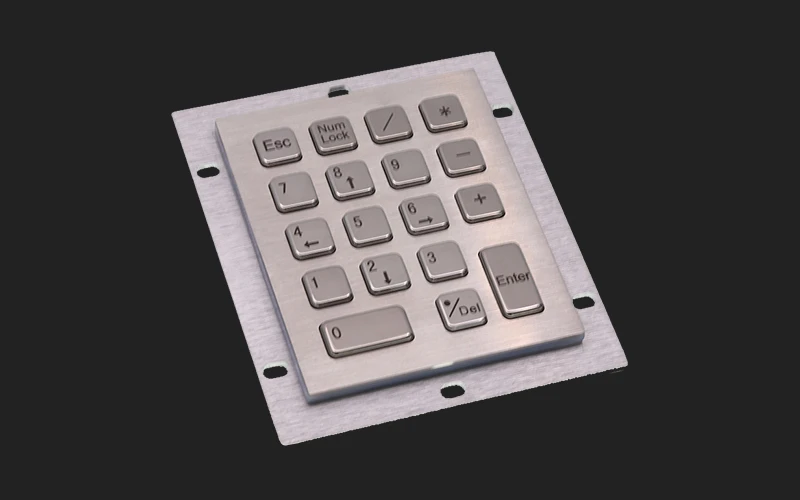

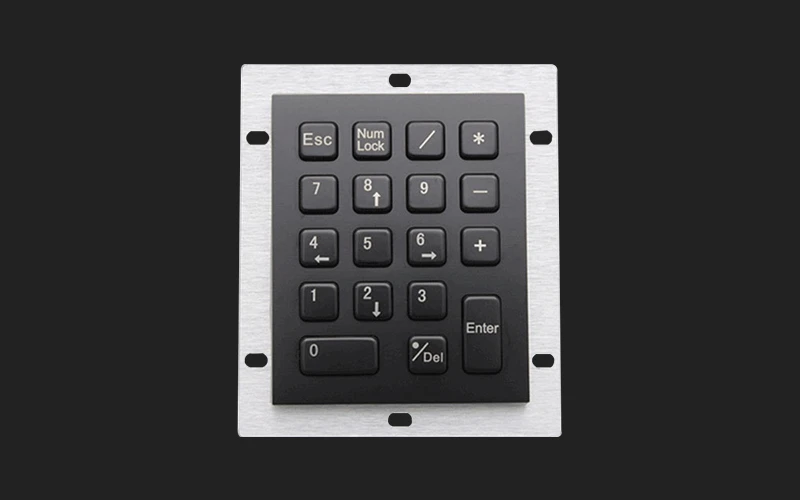

D-8212 Gallery
