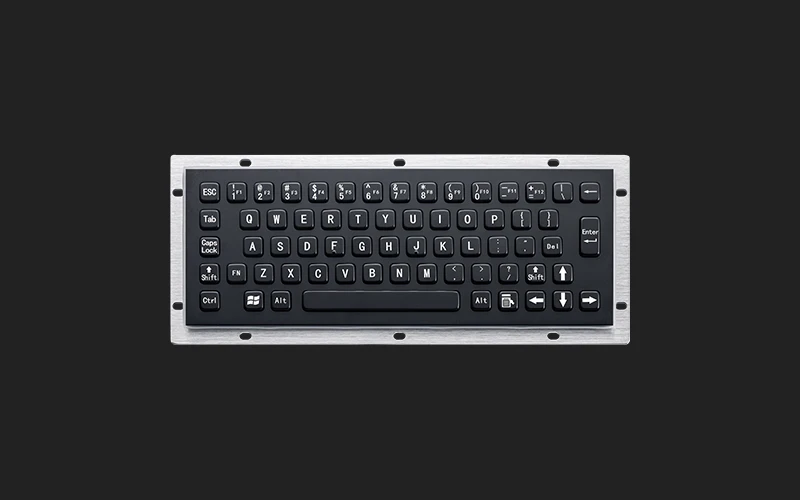

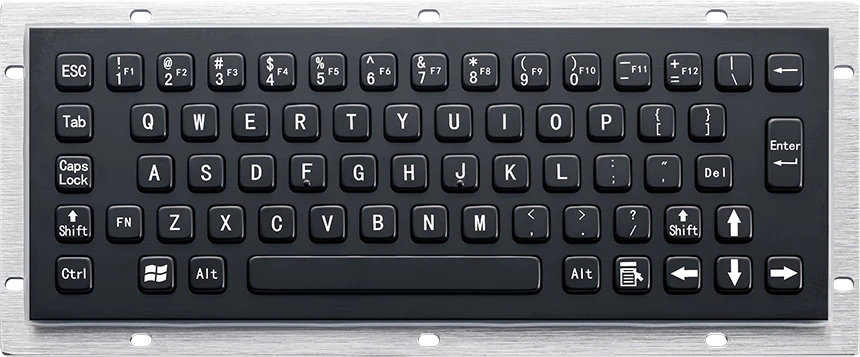

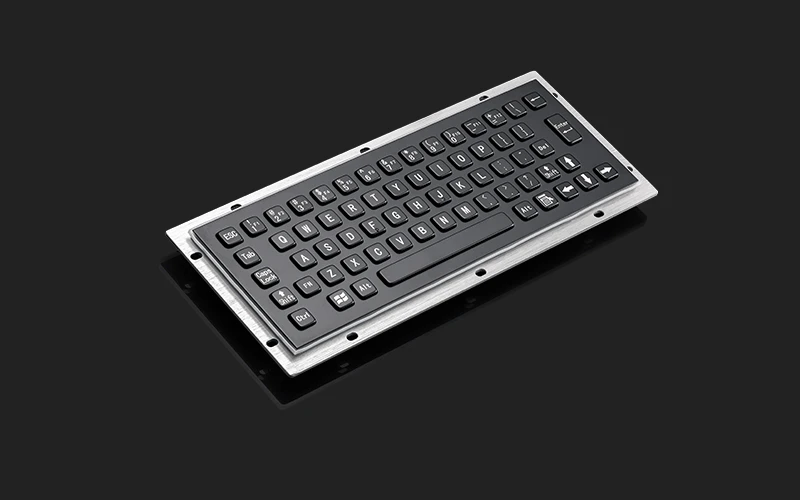

D-8601B
Metal Keyboard for Self Service Kiosk
Specially designed for harsh environment, use the brushed stainless steel material, and special water proof design, IP 65 protect level, it has good performance of water proof, dust proof and vandalism proof, which make it a good choice for public use or harsh environment.
- Gold-on-gold dome on gold PCB contact
- IP65 Rated, 304 Stainless Steel & Industrial Silicone for Reliable Durability
- Reinforced PCB to guarantee the mechanical stability
- Laser engraved characters for excellent durable
- Any language is available and it’s free of additional charge
D-8601B
Metal Keyboard for Self Service Kiosk
D-8601B
Metal Keyboard for Self Service Kiosk
High-Quality Materials
304 stainless steel & industrial-grade silicone
Laser Engraving
Key Engraving Is Laser Engraved
Protection Level
IP65 protection level
—— Best Solution For You

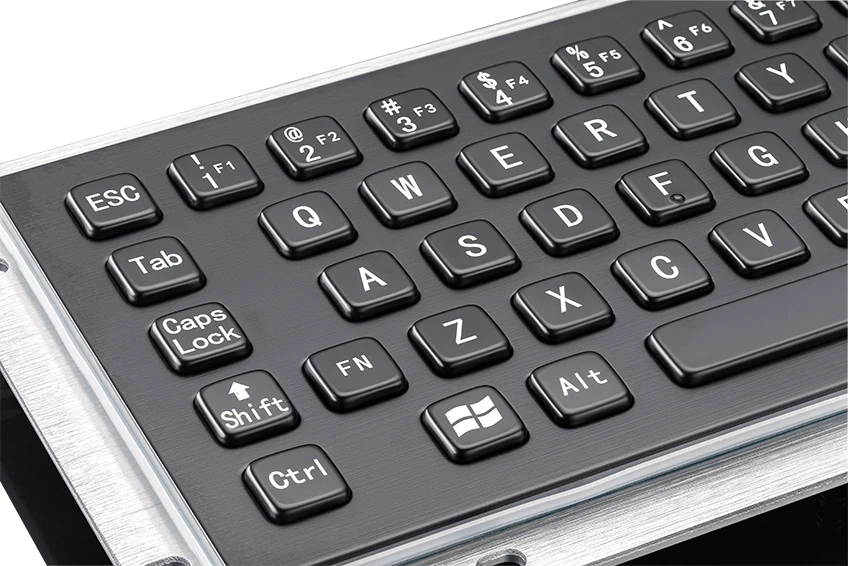

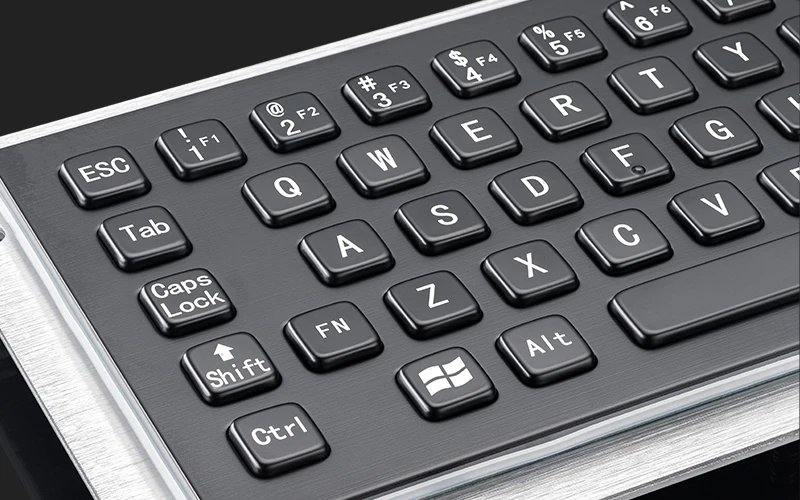

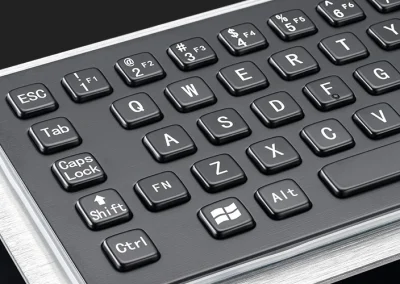

Laser-engraved Characters
Our keyboard characters are created using laser engraving, a fast and convenient process that ensures the markings do not wear off even with prolonged use; additionally, we offer flexible customization to accommodate the keyboard layouts of different countries.

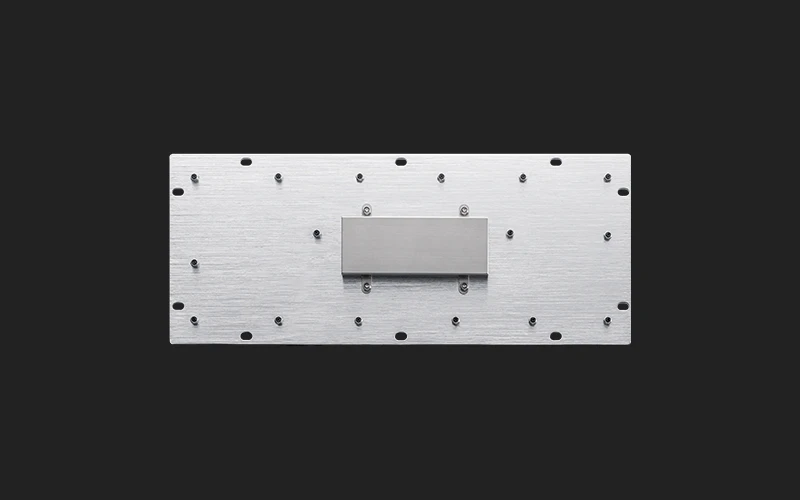

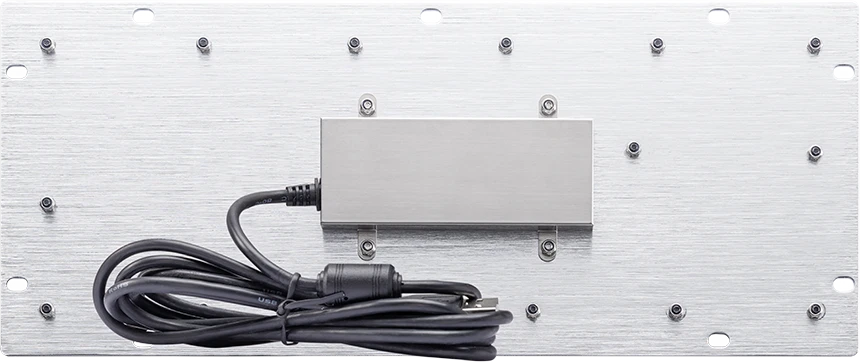

Embedded bottom installation method, the 3mm aluminum base plate at the bottom protects the circuit board.
3MM
—— Original Design Manufacturer

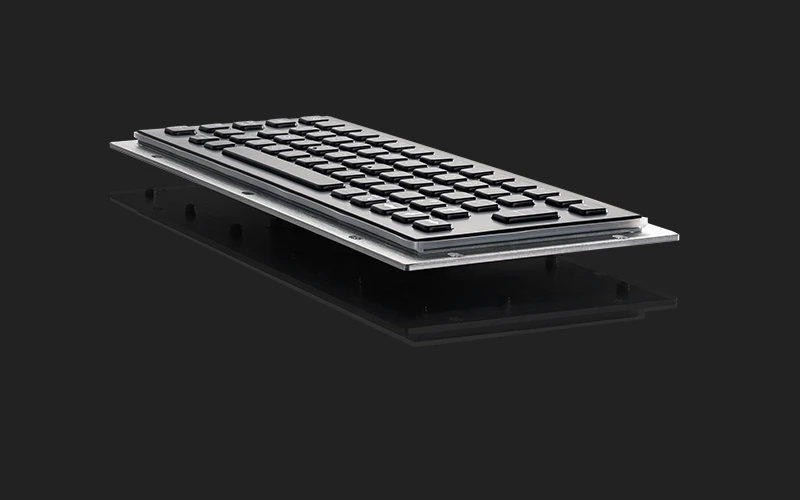

Blends Craftsmanship With Durability
Details show the pursuit of quality, selected 304 stainless steel, a stamping molding Industrial-grade silicone, first-class feel.
304 Stainless Steel
Electroplated Black
Industrial Grade Silicone
Product Size
Specifications
| Physical Properties | |
| Panel Size | 300×110mm |
| Communication Interface | USB |
| Number of Keys | 65 |
| Key Travel | ≈1.8mm |
| Key Pressure | ≈1.5N±0.2N |
| Individual Key Life | ≈200W Times |
| Key Material | 304 Stainless Steel |
| Panel Material | 304 Stainless Steel |
| Chassis Material | 304 Stainless Steel |
| PCB Craftsmanship | Gold immersion |
| Key Backlighting | No |
| Key Size | 14×14mm |
| Net Weight | ≈1450g |
| Trigger Mode | Carbon Grain |
| Electrical Properties | |
| Communication Interface | USB 2.0 |
| System Compatibility | Win, Linux, etc. |
| Working Voltage | 5V±0.25 |
| Working Current | <50mA |
| Maximum Power | ≈0.15W |
| Test Items | |
| Protection Level | IP65 |
| Working Temperature | -40°C~70°C |
| Storage Temperature | -45°C~85°C |
| Mean Time to Failure | >20000H |
| Mean Time to Repair | <30M |
D-8601B Gallery
