D-8208J
Metal Numeric Keypad for Self-service Vending Machines
12-Key Industrial Metal Backlit Numeric Keypad with rugged stainless steel construction, LED backlighting, and IP65 protection. Designed for reliable operation in access control, kiosks, vending machines, and industrial equipment.
- Gold-on-gold dome on gold PCB contact
- Multiple interface options available: USB, PS/2, RS232, RS485, Matrix
- Reinforced PCB to guarantee the mechanical stability
- The keys have a soft feel and are backlit
- Any language is available and it’s free of additional charge
D-8208J
Metal Numeric Keypad for Self-service Vending Machines
D-8208J
Metal Numeric Keypad for Self-service Vending Machines
High-Quality Materials
304 stainless steel & industrial-grade silicone
Character Backlight
Backlit characters can be customized.
Protection Level
IP65 protection level
—— Best Solution For You

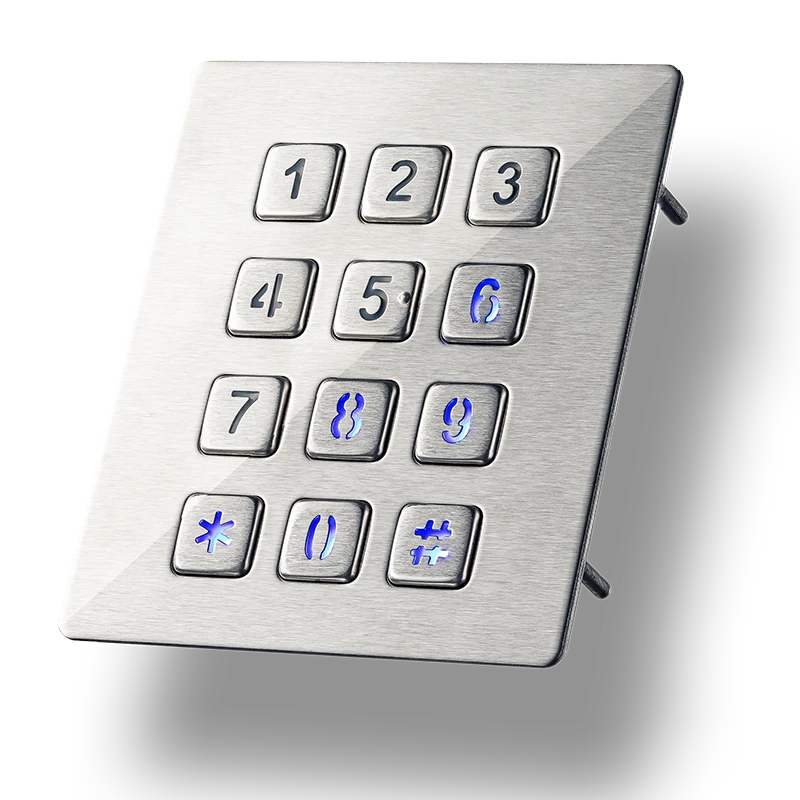

Backlit Key Characters
The keys are manufactured using a chemical etching process followed by epoxy resin filling to enable character backlighting; the characters illuminate as soon as the keyboard is powered on, ensuring visibility even at night.
—— Original Design Manufacturer
Multiple Interfaces Available
Provides various installation methods, compatible with various platforms
USB
PS2
RS232/RS485
Matrix
Product Size
Specifications
| Physical Properties | |
| Panel Size | 102×88mm |
| Communication Interface | USB/PS2/RS232/RS485/Matrix |
| Number of Keys | 12 |
| Key Travel | ≈1.5mm |
| Key Pressure | ≈0.6N±0.1N |
| Individual Key Life | ≈500W Times |
| Key Material | 304 Stainless Steel |
| Panel Material | 304 Stainless Steel |
| Chassis Material | 304 Stainless Steel |
| PCB Craftsmanship | Gold immersion |
| Key Backlighting | No |
| Key Size | 14×14mm |
| Net Weight | ≈300g |
| Trigger Mode | Carbon Grain |
| Electrical Properties | |
| Communication Interface | USB 2.0 |
| System Compatibility | Win, Linux, etc. |
| Working Voltage | 5V±0.25 |
| Working Current | <50mA |
| Maximum Power | ≈0.15W |
| Test Items | |
| Protection Level | IP65 |
| Working Temperature | -40°C~70°C |
| Storage Temperature | -45°C~85°C |
| Mean Time to Failure | >20000H |
| Mean Time to Repair | <30M |
