D-1603
Industrial Membrane Keyboards for Pharmaceutical Plants
Specially designed for harsh environment, use the brushed stainless steel material, and special water proof design, IP 65 protect level, it has good performance of water proof, dust proof and vandalism proof, which make it a good choice for public use or harsh environment.
- Gold-on-gold dome on gold PCB contact
- Matrix output with controller
- Reinforced PCB to guarantee the mechanical stability
- Laser engraved characters for excellent durable
- Any language is available and it’s free of additional charge
D-1603
Industrial Membrane Keyboards for Pharmaceutical Plants
D-1603
Industrial Membrane Keyboards for Pharmaceutical Plants
High-Quality Materials
304 stainless steel & industrial-grade silicone
Laser Engraving
Key Engraving Is Laser Engraved
Protection Level
IP54 protection level
—— Best Solution For You
Mechanical Trackball Mouse
A 38mm mechanical trackball mouse is embedded on the right side, and the operation is sensitive and noiseless.
—— Best Solution For You
Mechanical Trackball Mouse
A 38mm mechanical trackball mouse is embedded on the right side, and the operation is sensitive and noiseless.

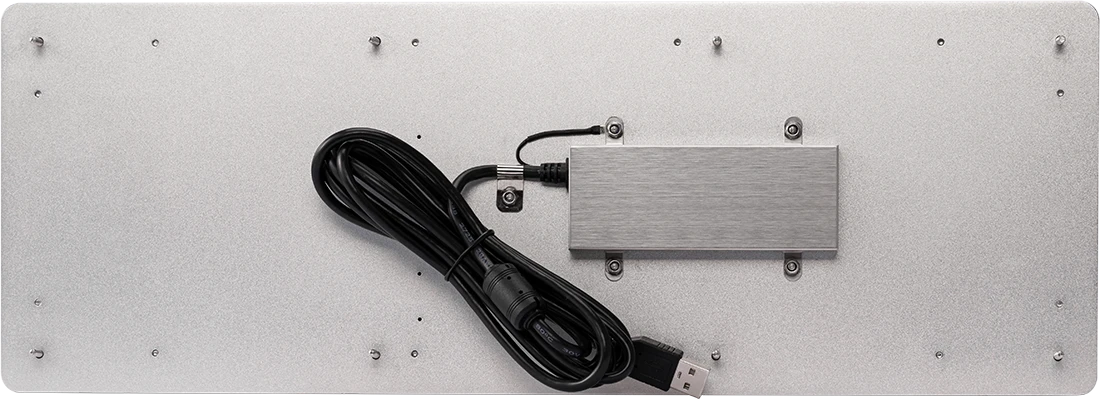

Embedded bottom installation method, the 3mm aluminum base plate at the bottom protects the circuit board.
3MM
Product Size
Specifications
| Physical Properties | |
| Panel Size | 392×110mm |
| Communication Interface | USB |
| Number of Keys | 65+2 |
| Key Travel | ≈1.8mm |
| Key Pressure | ≈1.5N±0.2N |
| Individual Key Life | ≈500W Times |
| Key Material | 304 Stainless Steel |
| Panel Material | 304 Stainless Steel |
| Chassis Material | 304 Stainless Steel |
| PCB Craftsmanship | Gold immersion |
| Key Backlighting | No |
| Key Size | 14×14mm |
| Net Weight | ≈1450g |
| Trigger Mode | Carbon Grain |
| Electrical Properties | |
| Communication Interface | USB 2.0 |
| System Compatibility | Win, Linux, etc. |
| Working Voltage | 5V±0.25 |
| Working Current | <50mA |
| Maximum Power | ≈0.15W |
| Test Items | |
| Protection Level | IP54 |
| Working Temperature | -40°C~70°C |
| Storage Temperature | -45°C~85°C |
| Mean Time to Failure | >20000H |
| Mean Time to Repair | <30M |
