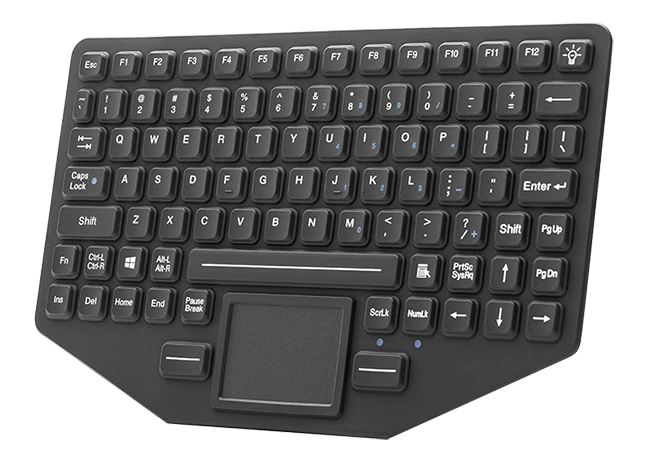

D-6209
Waterproof Silicone Keyboard for Portable Computers
Designed for rugged computers, our silicone keyboard provides reliable performance in harsh environments. With a sealed waterproof design, excellent durability, and customizable options, it is ideal for military, industrial, medical, transportation, and outdoor applications where dependable operation is essential.
- Fully Sealed Protection for Harsh Environments
- Built for Long-Term Reliability
- Comfortable and Accurate Typing
- Easy to Clean and Disinfect
- Backlit key characters ensure usability even in dim light
D-6209
Waterproof Silicone Keyboard for Portable Computers
D-6209
Waterproof Silicone Keyboard for Portable Computers
Materiales de alta calidad
Industrial-grade silicone & 6061 Aluminum
Military-grade Standards
Electroless Nickel Immersion Gold PCB
Nivel de protección
IP66 protection level
-- La mejor solución para usted
Fully Sealed Surface Design
Industrial-grade silicone, molded as a single, seamless unit; the front face achieves an IP66 protection rating and is easy to clean, allowing for washing or wiping with disinfectant.

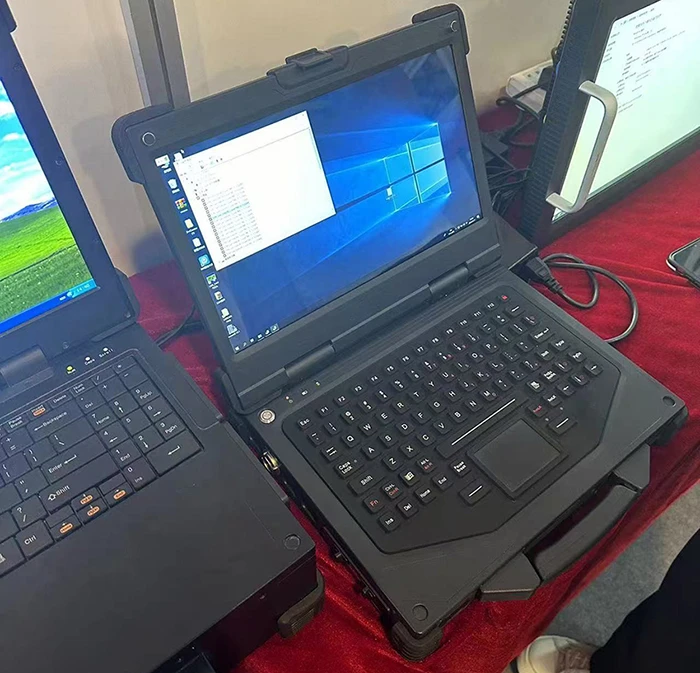

—— Application Scenarios
The Top Choice for Specialized Portable Computers
Our ruggedized silicone keyboards are widely used in specialized portable computers and vehicle-mounted systems. They not only function reliably under conditions of intense vibration and wet, rainy weather but also withstand extreme temperatures(-40℃~+70℃), making them the ideal choice for harsh environments.
Tamaño del producto
Especificaciones
| Propiedades físicas | |
| Tamaño del panel | 282.5×178.5mm |
| Interfaz de comunicación | USB |
| Número de teclas | 87+2 |
| Viajes clave | ≈1,5 mm |
| Presión clave | ≈1,5N±0,2N |
| Clave individual Vida | ≈200W Times |
| Material clave | Silicona |
| Material del panel | Silicona |
| Material del chasis | Aluminio 6061 |
| Artesanía en PCB | Inmersión en oro |
| Retroiluminación de teclas | Yes |
| Tamaño de la llave | 12.84×12.84mm |
| Peso neto | ≈1Kg |
| Modo de activación | Grano de carbono |
| Propiedades eléctricas | |
| Interfaz de comunicación | USB 2.0 |
| Compatibilidad del sistema | Win, Linux, etc. |
| Tensión de trabajo | 5V±0.25 |
| Corriente de trabajo |
≤50mA(Turn off backlit) ≤200mA(Turn on backlit) |
| Potencia máxima | ≈0.15W |
| Elementos de prueba | |
| Nivel de protección | IP66 |
| Temperatura de trabajo | -40°C~70°C |
| Temperatura de almacenamiento | -45°C~85°C |
| Tiempo medio hasta el fallo | >20000H |
| Tiempo medio de reparación | <30M |
